Grids In The Real World


It’s one thing to write about how use­ful and impor­tant grids are for a design, it’s another thing to uti­lize them in a real world project. I recently designed this site for my wife’s event com­pany using a grid sys­tem that I’ve devel­oped that also incor­po­rates a base­line grid. It’s very sim­i­lar to the grid in my Design­ing Grid Sys­tems For Flash arti­cle, the only dif­fer­ence being the ver­ti­cal height. The grid is 946 pix­els wide to accom­mo­date 1024x768 screen res­o­lu­tions with base­lines that are 10 pix­els apart. Since this isn’t a Flash site, and ver­ti­cal scrolling is accept­able, the height is taller for the pages with more content.

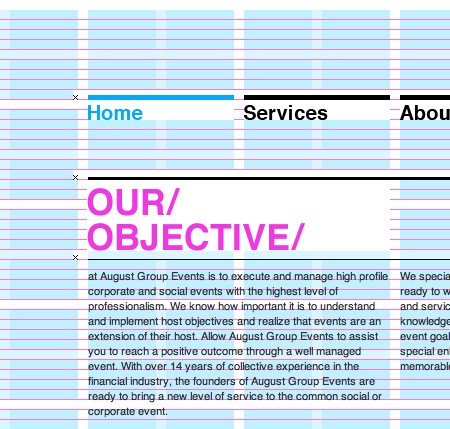

Using the Rule of Thirds, the grid is divided into 6 columns that are 146 pix­els wide and 12 sub­di­vi­sions that are 68 pix­els wide, all sep­a­rated by 10 pixel wide gut­ters. The first two columns, or 4 sub­di­vi­sions, are reserved for the logo. The remain­ing 4 columns are used for the nav­i­ga­tion and the site con­tent. Since there are 4 nav­i­ga­tion items to work with each one occu­pies the width of one col­umn. The area below con­tain­ing the head­ers, images and text is divided into two large columns that are 150 pix­els wide, a good width for text blocks since I can fit 8 – 10 words per line mak­ing it eas­ier to read. Text is set in Hel­vetica and styled using CSS. Font size is set to 11 pix­els and lead­ing is at 14 pix­els cre­at­ing text blocks that flow well and are easy to read. Using a 14 pixel lead­ing every other line falls on a base­line giv­ing the text a sys­tem­atic struc­ture to go along with the rest of the grid sys­tem. So not only are the images and graph­ics work­ing together in a cohe­sive struc­ture, the text is as well, giv­ing you a well bal­anced and orga­nized design.

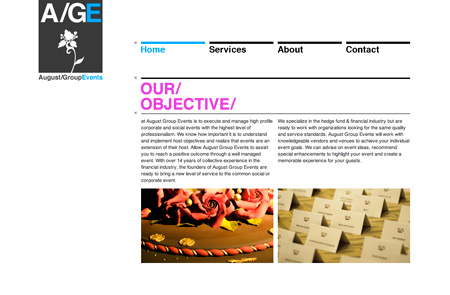

You can view the full site with the grid vis­i­ble but keep in mind that since all browsers ren­der CSS dif­fer­ently, cer­tain things might be slightly off in cer­tain browsers. It’s best viewed in Safari.
